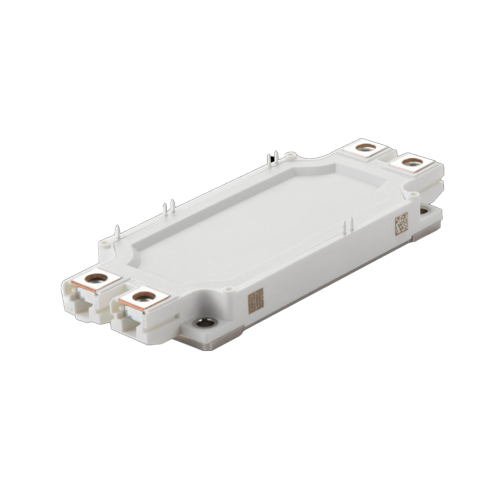

Features
l 1200VTrench Gate & Field Stop Structure
l High Short Circuit Capability
l Low Switching Loss
l High Reliability
l Positive Temperature Coefficient
Typical Applications
l Solar Inverter
l Uninterrupted Power Supply
l Servo Driver
l Motor Driver
Absolute Maximum Ratings TC=25℃ unless otherwise note
|
Parameter |
ymbol |
Condition |
Value |
Unit |
|
Collector-Emitter Voltage |
VCES |
VGE=0V,Tvj=25°C |
1200 |
V |
|
DC Collector Current |
IC |
Tc=100°C, Tvj,max=175°C |
600 |
A |
|
Peak Collector Current |
ICM |
t =1ms p |
1200 |
A |
|
Gate-Emitter Voltage |
VGES |
|
±20 |
V |
|
IGBT Maximum Power Dissipation |
PD |
Tc=25°C, Tvj, max=175°C |
3950 |
W |
|
Repetitive peak reverse voltage |
VRRM |
Tvj=25°C |
1200 |
V |
|
Continuous DC forward current |
IF |
|
600 |
A |
|
Repetitive peak forward current |
IFRM |
t =1ms p |
1200 |
A |
|
I2t-value |
I2t |
VR=0V,tp=10ms,Tvj=125°C |
51000 |
A2s |
|
IGBT Short Circuit Withstand Time |
t psc |
|
10 |
μs |
|
Type |
VCES |
Ic@Tc=100℃,Tvj=Tvjmax |
Vce(sat) |
Vf |
Tvjopmax |
Package |
|
YT450TN12A3F5-E3F |
1200V |
450A |
2.0 |
2.35 |
150℃ |
E3F |
|
YT450B12C6F4 |
1200V |
450A |
2.0 |
2.0 |
150℃ |
62mm |
|
YT450B12E6K4 |
1200V |
450A |
1.75 |
2.25 |
150℃ |
ED3 |
|
YT600B12E6K4 |
1200V |
600A |
1.75 |
1.75 |
150℃ |
ED3 |
|
YT900B12E6K7 |
1200V |
900A |
1.65 |
1.9 |
150℃ |
ED3 |
|
YT200B17E6K4 |
1700V |
200A |
1.8 |
1.9 |
150℃ |
ED3 |
|
YT300B17E6K4 |
1700V |
300A |
1.8 |
2.0 |
150℃ |
ED3 |
|
YT450B17E6K4 |
1700V |
450A |
1.8 |
2.0 |
150℃ |
ED3 |
|
YT600B17E6K4 |
1700V |
600A |
1.8 |
2.2 |
150℃ |
ED3 |
|
YT900B17E6K7 |
1700V |
900A |
1.95 |
2.1 |
175℃ |
ED3 |
